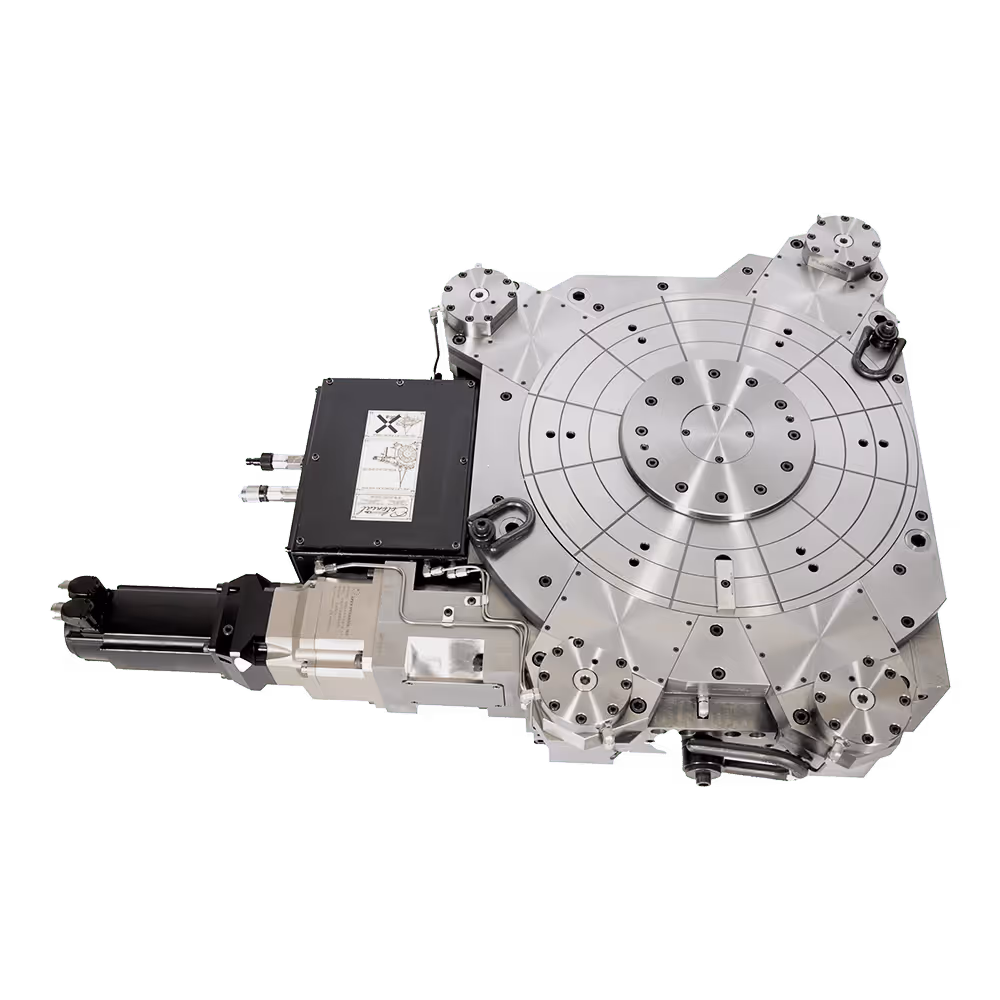

Rotary Index Tables

Our Rotary Index Table Capabilities & Specs

• Drive Types – Servo, hydraulic, pneumatic, or mechanical cam-driven indexing systems.
• Indexing Accuracy – Standard repeatability of ±0.002" (±0.05 mm) or better, depending on model.
• Load Capacity – Tables can support loads from 50 lbs (23 kg) up to 20,000+ lbs (9,000+ kg).
• Table Diameters – Custom diameters available, typically ranging from 8" (200 mm) to 60"+ (1500 mm).
• Number of Stations – Configurable indexing positions (2–24+ stops per revolution).
• Index Time – Fast indexing speeds from 0.2 to 2.5 seconds depending on table size and drive type.
• Mounting Orientation – Horizontal, vertical, or inverted mounting options.
• Bearing Design – High-precision cross roller or axial-radial bearings for high-load stability.
• Clamping Systems – Mechanical or hydraulic clamping to ensure rigidity during machining.
• Control Integration – Compatible with CNC and PLC systems for synchronized motion control.
• Cooling & Sealing – Available with sealed designs for coolant protection, dust environments, and washdown tolerance.
• Applications – Ideal for rotary machining centers, automated assembly, drilling/tapping cells, transfer lines, and inspection stations.
